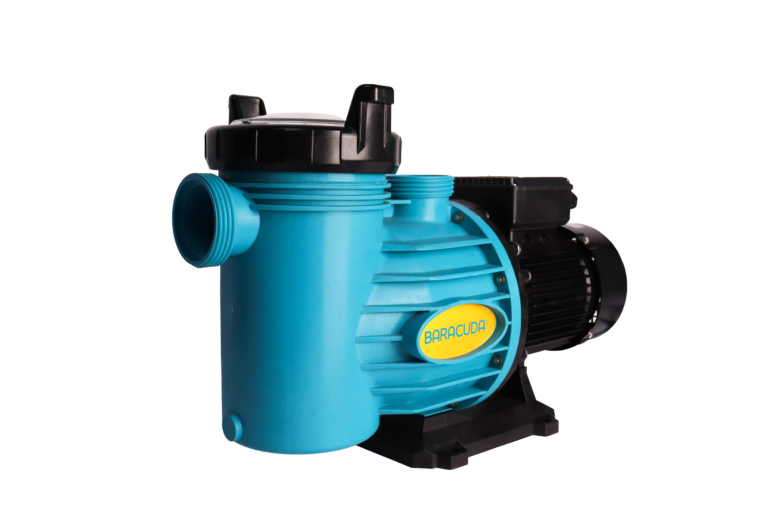

POOL PUMP AND MOTOR BARACUDA TITAN 2 SS 0.55KW

POOL PUMP AND MOTOR BARACUDA TITAN 2 SS 0.55KW Overview: The Baracuda Titan 2 SS 0.55kW stands out as an epitome of efficient pool maintenance. Specifically designed for the demands of modern pools, this single-speed pump ensures consistent and reliable performance while being incredibly user-friendly and economical. Key Features: Economical Operation: The Baracuda Titan 2 SS 0.55kW is built with state-of-the-art IE2 high-efficiency electrical motors, which not only reduce power consumption but also provide substantial savings on electricity bills. Optimal Filtration for Medium Pools: This model is tailor-made for pools with a volume of up to 35,000L, working in tandem with a 2-bag sand filter (2x 40kg bags of sand) to ensure crystal-clear water. User-Centric Design: Easy Maintenance: Equipped with an easy-to-clean debris basket. Quiet Operation: Ensures tranquillity around your pool area. Simple Installation: Get your pump up and running without any hassle. Energy Savings: Advanced design ensures optimal performance with reduced power consumption. Reliable Warranty: A 3-year warranty offers peace of mind, testifying to the product’s quality and durability. Key Benefits: High-Efficiency Motors: Cutting-edge IE2 electrical motors deliver peak performance while ensuring minimal electricity usage. Savings on Your Bill: The pump’s efficient design translates to noticeable reductions in your power bills. Versatility: Ideal for both in-ground and above-ground residential pools, leisure spas, solar pool heating, and water features. Why Choose the Baracuda Titan 2 SS 0.55kW? Optimized Filtration: With its capacity, it ensures faster water circulation and efficient filtration for medium-sized pools. Economic Operation: Reduced operational costs thanks to its energy-efficient design. Durable & Reliable: Features like a spacious pump basket, easy-opening screw lid, and a robust 3/4” 6-bar ceramic shaft seal vouch for its longevity and reliability. Seamless Integration: Its compatibility with a 2-bag sand filter ensures optimal water clarity. Recommended Specifications: Model No. TITAN 2 SS 0.55kW 230V 80F HP (Horsepower) 3/4 HP Voltage (V) 230 Output kW 0.55 Pool Volume Up to 35,000L Sand Filter 2-bag (2x 40kg bags of sand) For a hassle-free and efficient pool maintenance experience, make the Baracuda Titan 2 SS 0.55kW your first choice. Model Specifications: Model No. TITAN 2 PUMP 0.37kW 230V 80F TITAN 2 PUMP 0.55kW 230V 80F TITAN 2 PUMP 0.75kW 230V 80F TITAN 2 PUMP 1.10kW 230V 80F HP (Horsepower) 1/2 HP 3/4 HP 1 HP 1 1/2 HP Voltage (V) 230 230 230 230 Output kW 0.37 0.55 0.75 1.10 Ensure the health of your pool and your wallet with the Baracuda Titan 2 SS. Baracuda Titan 2 SS Pump More Info Installation Instructions: We recommend that the pump is installed by a qualified pool professional or electrician. A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following: 1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof. 2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than ± 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities. 3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump. 4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding. 5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the motor position as it is provided with a drain hole at the bottom to drain off any water which may leak past the mechanical shaft seal. A cable gland must be fitted to the terminal box. NOTE: The length of cable supplied with the pump is for testing only and should be replaced with suitably rated cable. Minimum specification 60245IEC66 (HO7RN-F). 6. Rotation: Before checking the rotation, drain the pump leaf trap of water. The correct rotation is clockwise when viewed from the motor end. Pumps with 220-volt single phase motors are wired at the manufacturer for the correct rotation. How to keep your pool pump in good running condition 1. Clean the leaf trap in the pump and pool weir regularly. 2. Do not allow dust to accumulate on the motor as this affects the cooling process. 3 Do not leave foreign objects lying on the motor. 4 Change the rubber 0-Ring in the lid at 1-year intervals to maintain a good seal. The face on the leaf trap where the 0-Ring sits must be kept clean and smooth. 6. DO NOT RUN THE PUMP DRY or under closed valve conditions for extended periods. 7. Backwash your filter once a week, or when the pressure exceeds 50% above the starting operating pressure. 8. No Vaseline or petroleum-based lubricants should be used for lubricating 0-Rings or seals. Only silicone paste should be used. Troubleshooting a pool pump: Safety first! Isolate the motor before checking for problems. Motor fails to start: A) Check that incoming mains wires are connected to the correct motor terminals. B) Check that the mains supply coming into the motor at the terminals corresponds with the data on the motor name plate. C) Remove the fan cowl of the motor or insert a screwdriver in the slot of the motor shaft at the fan end and check if the shaft can be rotated freely. If this is not the case, the motor will have to be removed to check if foreign objects are jammed in the impeller. D) Reset thermal overload (if fitted) at the reset button on motor terminal box. Motor hums but will not start: A) Remove the fan cowl of the motor or insert a screwdriver in the slot of the motor shaft at the fan end and check if the shaft can be rotated freely. If this is not the case, the motor will have to be removed to check for faulty bearings, or if foreign objects have become jammed in the impeller. If the shaft can be rotated, check that the capacitor is functioning. B) Check that phases of motor windings are not down to earth. If they are the motor has been wet or is burned out. Pump runs but will not pump or pumps poorly. A) Check direction of rotation. B) Make sure pump is properly primed. C) Make sure correct valves are open. D) Make sure that leaf trap and filter are clean. Backwash filter if necessary. E) Make sure that leaf trap lid and “0” Ring are sealing properly, and that lid lock handle is tightened firmly. This can normally be diagnosed by air bubbles entering the pool at return point. Water leaks from drain seal plate flange: The mechanical seal needs to be replaced. Motor runs noisily: A) Clean leaf trap and check for any obstruction on the suction line. B) If this does not help, the motor bearings may need replacement. Warranty Information: Thank you for choosing the Baracuda Titan 2 SS Pool Pump. We are dedicated to providing you with a top-quality pump to meet your pool needs. To ensure smooth operation, please adhere closely to the manual instructions provided here. It is imperative to note that warranty claims will be considered invalid if the manual’s content is not adhered to. Warranty Coverage: Baracuda Titan 2 SS Pool Pumps are covered by a warranty against defects in materials and workmanship. The warranty period for all Baracuda Titan 2 SS Pool Pumps is 3 years, subject to normal operating conditions. These conditions include: Regular Cleaning: The pump basket should be cleaned regularly to prevent debris and excessive amounts of leaves from restricting flow and potentially causing the motor to overheat. Proper Usage: Pumps should never be allowed to run dry, nor should they be flooded. Technical Assistance: If any problems are experienced, the pump should not be removed from the place of installation. Instead, please contact Customer Support or your local supplier for guidance. A factory technician may be nearby and able to provide onsite assistance. Sole Obligation of Baracuda Titan 2 SS and Distributors: In case of a warranty claim, Baracuda Titan 2 SS or its authorized distributors are solely responsible to the end user and have the following options: Repair: Should any Baracuda Titan 2 SS Pool Pump or parts be found defective in material or workmanship, Baracuda Titan 2 SS will repair the pump or parts at no cost to you. This prompt repair will ensure your pump is back to operational status. Replacement or Credit: In unusual situations and at their discretion, Baracuda Titan 2 SS or its authorized distributors may opt to replace the faulty pump or issue a credit note at the original purchase price (excluding delivery/shipping costs) for the faulty goods or parts. This option is available within 7 days of the purchase date. Limitations and Exclusions: Please note that this warranty constitutes the entire warranty with respect to the goods and supersedes all other warranties, expressed or implied, including any implied warranty by distributors, salespersons, or fitness for a particular purpose. It is crucial to comply with the provisions of the manual and accepted engineering practices to maintain the validity of the warranty. The warranty does not cover damages or delays caused by failure to comply with the provisions of the manual or accepted engineering practices. Additionally, the warranty does not cover warranty periods for repaired or replaced goods, which remain as specified from the original purchase date. It’s important to retain proof of purchase or the warranty is null and void. For any warranty inquiries or claims, please contact Customer Support. They will guide you through the process and provide the necessary assistance. Thank you for your selection of a Baracuda Titan 2 SS Pool Pump. We have full confidence in the quality of our products and are dedicated to ensuring your contentment.
