POOL PUMP AND MOTOR QUALITY SWIMFLO 2 1.5KW

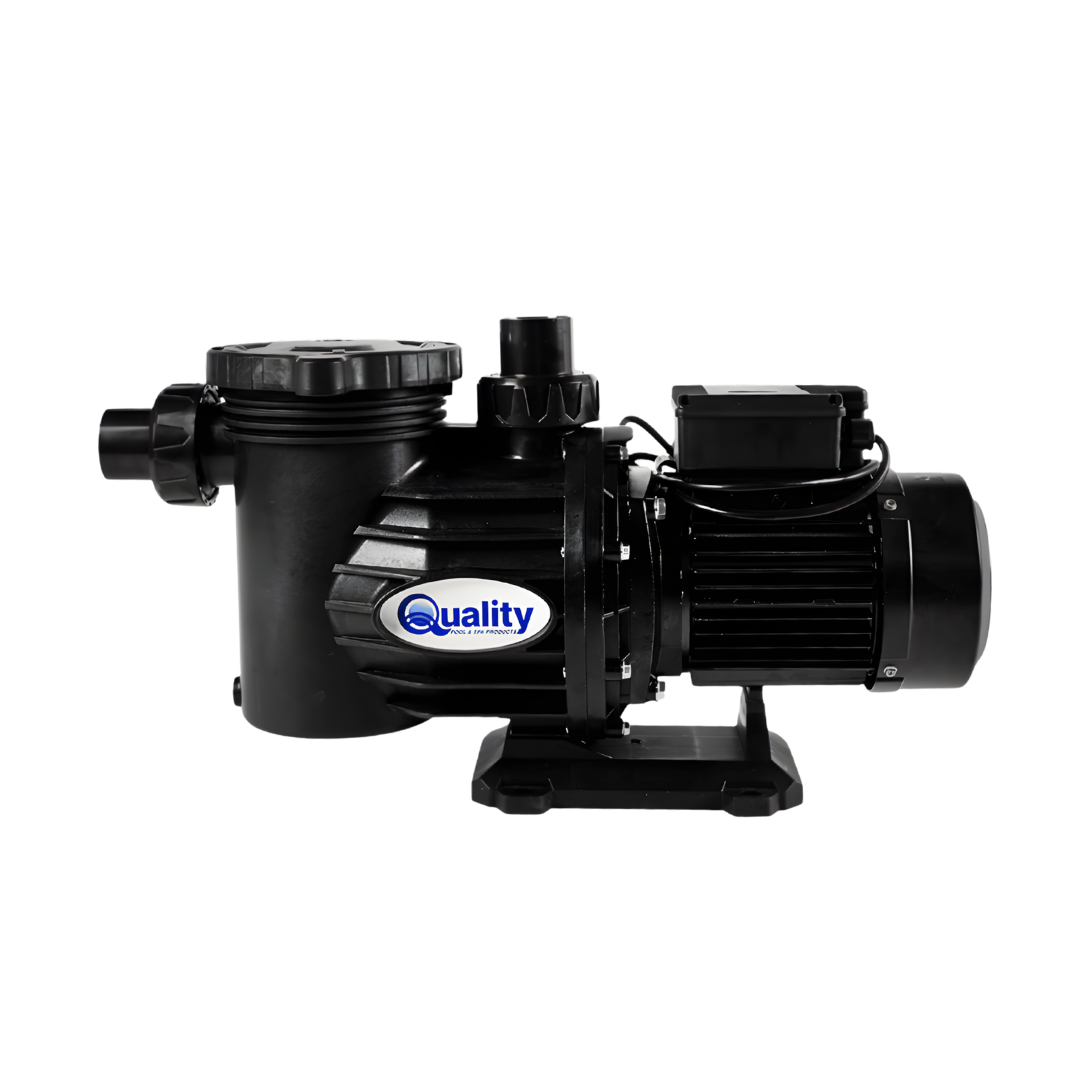

POOL PUMP AND MOTOR QUALITY SWIMFLO 2 1.5KW Product Description: The Quality Swimflo 2 1.5kW Pool Pump and Motor is a high capacity circulation pump designed for large swimming pool filtration systems. With a 1.5kW motor and suitability for pools up to 100,000 litres, it is built for pool owners who need strong water movement through a larger filter system. This model is listed as Quality Swimflo 2 SFP15 and is recommended for use with a 5 bag sand filter. It is a suitable option for larger residential pools and selected commercial pool applications where correct sizing, plumbing and electrical installation are important. A pool pump is the heart of the filtration system. It moves water from the pool through the weir, pump basket, filter and return lines. In larger pools, the pump must be matched correctly to the filter, pipework and pool volume. An undersized pump may struggle to circulate the water properly, while poor plumbing can restrict flow and place unnecessary load on the motor. The Quality Swimflo 2 1.5kW pump supports 50mm minimum suction and discharge pipework, with 63mm recommended for larger systems. Pipework should never be smaller than the pump connection. Suitable unions should be used on the pump connections or close to the pump so that the pump can be removed later for servicing if needed. The pump is self priming and can be installed above or below water level when correctly installed. Where the pump is installed below water level, a control valve should be fitted on the suction line between the pool weir or skimmer and the pump. This helps prevent the pump from flooding when the lid is opened to clean the leaf basket. Correct pump positioning is important. The pump should be placed on a flat, level surface that is protected from rain and flooding. The motor is fan cooled and requires enough ventilation during operation. At least 150mm clearance behind the motor fan cowling should be allowed for airflow and service access. The motor is not waterproof, so the pump house or box must have proper drainage and ventilation. For best long term performance, this pump should be installed by a qualified pool professional and connected electrically by a suitably qualified person. Electrical connection, cable rating, waterproofing, ventilation, drainage and correct pump rotation all matter. The supplied information notes that the correct rotation is clockwise when viewed from the motor end, and that 220 volt single phase motors are wired at the manufacturer for correct rotation. Regular maintenance helps keep the pump running properly. Clean the pump leaf trap and pool weir regularly, keep the motor free from dust, backwash the filter weekly or when pressure rises by 50 percent above starting operating pressure, and replace the lid O ring annually. Only silicone paste should be used on O rings and seals. Do not use Vaseline or petroleum based lubricants. FAQs What is the Quality Swimflo 2 1.5kW pool pump used for? The Quality Swimflo 2 1.5kW pool pump is used to circulate pool water through the filtration system. It draws water from the pool, pushes it through the filter and returns filtered water back to the pool. What pool size is this pump suitable for? The supplied information states that the Quality Swimflo 2 1.5kW pump is suitable for pools up to 100,000 litres. What filter is recommended for this pump? This pump is recommended for use with a 5 bag sand filter. Matching the pump to the correct filter size is important for proper circulation and filtration. What pipe size should be used with this pump? The supplied information states 50mm minimum pipe connections, with 63mm recommended. Suction and discharge pipework should not be smaller than the pump connection. Is the Quality Swimflo 2 1.5kW pump self priming? Yes. The pump is listed as self priming and can be installed above or below water level when installed correctly. Can this pump be installed below the pool water level? Yes, but if installed below water level, a control valve should be fitted on the suction pipe between the pool weir or skimmer and the pump. This helps prevent flooding when the pump lid is opened for basket cleaning. Does the pump need professional installation? Yes. Professional installation is recommended. Electrical connections must be carried out by suitably qualified people only, and correct plumbing, drainage and ventilation are important. Why is ventilation important for this pump? The motor is fan cooled. Poor ventilation can cause overheating, premature bearing failure or motor burnout. The pump house or box should allow proper airflow during operation. Is the pump motor waterproof? No. The motor is not waterproof. The pump must be protected from rain and flooding, and the pump house or box must have adequate drainage. What maintenance does this pump need? Clean the leaf trap and pool weir regularly, keep the motor dust free, backwash the filter weekly or when pressure rises by 50 percent, replace the lid O ring yearly and use silicone paste only on O rings and seals. Why should the pump not run dry? Running the pump dry can damage internal parts, including the mechanical seal. The pump should also not be run under closed valve conditions for extended periods. What does it mean if water leaks from the drain seal plate flange? The supplied troubleshooting information states that a water leak from the drain seal plate flange usually means the mechanical seal needs to be replaced. What does it mean if the motor hums but will not start? This can happen if the shaft cannot rotate freely, if bearings are faulty, if foreign objects are jammed in the impeller or if the capacitor is faulty. The motor must be isolated before checking. Key Features & Benefits 1.5kW high capacity pool pump and motor Model Quality Swimflo 2 SFP15 Suitable for large pools up to 100,000 litres Recommended for 5 bag sand filters Supports large pool water circulation Self priming design Can be installed above or below water level when correctly installed 50mm minimum pipework 63mm recommended pipework for larger systems Clockwise rotation, pre wired Low noise and low vibration design according to supplied information Corrosion resistant construction according to supplied information Suitable for large residential and selected commercial pool systems Professional installation recommended Practical maintenance guidance supplied Strong option for larger filtration systems Real World Applications / Ideal For Large residential swimming pools Pools up to 100,000 litres Pool systems using a 5 bag sand filter Larger filtration systems requiring stronger circulation Selected commercial pools where system sizing is correct Pool owners replacing an existing 1.5kW pump New large pool pump installations Pools using 50mm or 63mm plumbing South African pools with heavy circulation demand Pump rooms with proper drainage and ventilation Installations handled by qualified pool professionals and electricians Technical Specifications Specification Details Product Type Pool pump and motor Brand Quality Model Swimflo 2 Model Code SFP15 Motor Power 1.5kW Maximum Pool Size Up to 100,000 litres Recommended Filter 5 bag sand filter Pipe Connections 50mm minimum, 63mm recommended Self Priming Yes Installation Position Above or below water level when correctly installed Rotation Clockwise, pre wired Motor Cooling Fan cooled Recommended Rear Clearance Minimum 150mm behind motor fan cowling Electrical Connection By suitably qualified person only Warranty Not supplied Installation / Usage Notes Installation by a qualified pool professional or electrician is recommended. Suction and discharge pipes must not be smaller than the pump connection. Use 50mm minimum pipework, with 63mm recommended for larger systems. Use suitable unions on or close to the pump connections for future servicing. Do not support the pipework on the pump or the pump on the pipework. Make sure all pipe connections are water and airtight. Use a suitable pipe jointing compound. Keep the suction pipe as short as possible. Use pipes rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for at least 4 times the pipe diameter. Do not overtighten fittings into the pump inlet or outlet. Position the pump on a flat, level surface. Protect the pump from rain and flooding. The motor is not waterproof. If installed below water level, fit a control valve on the suction pipe between the pool weir or skimmer and the pump. Allow at least 150mm clearance behind the motor fan cowling. Make sure the pump house or box has drainage and ventilation. Do not run the pump dry. Do not run the pump under closed valve conditions for extended periods. Electrical connections must be done by suitably qualified people only. A cable gland must be fitted to the terminal box. The supplied cable length is for testing only and should be replaced with suitably rated cable. Minimum cable specification supplied: 60245IEC66 HO7RN-F. Correct rotation is clockwise when viewed from the motor end. 220 volt single phase motors are wired at the manufacturer for correct rotation. Maintenance Guide Clean the pump leaf trap regularly. Clean the pool weir basket regularly. Keep dust from accumulating on the motor. Do not leave foreign objects on the motor. Replace the lid O ring at 1 year intervals to maintain a good seal. Keep the O ring seating face clean and smooth. Backwash the filter once a week or when the pressure exceeds 50 percent above the starting operating pressure. Use silicone paste only for O rings and seals. Do not use Vaseline or petroleum based lubricants. Isolate the motor before checking for faults. Troubleshooting Guide Motor fails to start Check that incoming mains wires are connected to the correct motor terminals. Check that the mains supply at the motor terminals matches the data on the motor name plate. Remove the fan cowl or use the motor shaft slot at the fan end to check whether the shaft rotates freely. If the shaft does not rotate freely, the motor may need to be removed to check for foreign objects jammed in the impeller. Reset the thermal overload if fitted. Motor hums but will not start Check whether the shaft can rotate freely. If the shaft does not rotate, check for faulty bearings or foreign objects in the impeller. If the shaft rotates, check whether the capacitor is functioning. Check that the motor windings are not down to earth. Pump runs but does not pump properly Check direction of rotation. Make sure the pump is properly primed. Make sure the correct valves are open. Make sure the leaf trap and filter are clean. Backwash the filter if needed. Check that the leaf trap lid and O ring are sealing properly. Tighten the lid lock handle firmly. Air bubbles at the pool return may indicate a sealing or suction air leak. Water leaks from the drain seal plate flange The mechanical seal likely needs replacement. Motor runs noisily Clean the leaf trap. Check for obstruction on the suction line. If the noise continues, motor bearings may need replacement. Warranty Information Warranty information was not supplied with the product details. Damage caused by motor flooding is normally not covered, based on the supplied installation guidance. Confirm warranty terms with the retailer or supplier before purchase. Conclusion The Quality Swimflo 2 1.5kW Pool Pump and Motor is a strong circulation pump for large pools up to 100,000 litres and is recommended for use with a 5 bag sand filter. With self priming operation, 50mm minimum pipe support, 63mm recommended pipework and heavy duty circulation capacity, it is a practical choice for larger pool filtration systems when professionally installed and correctly maintained. Pair with the  5-Bag Sand Filter to get the most out of your filtration system. Need less power? Explore the Quality 1.1kW Pump – Swimflo 2 for slightly smaller setups. Don’t forget to stock up on Pump Accessories for maintenance and installation ease.. Warranty Information:
