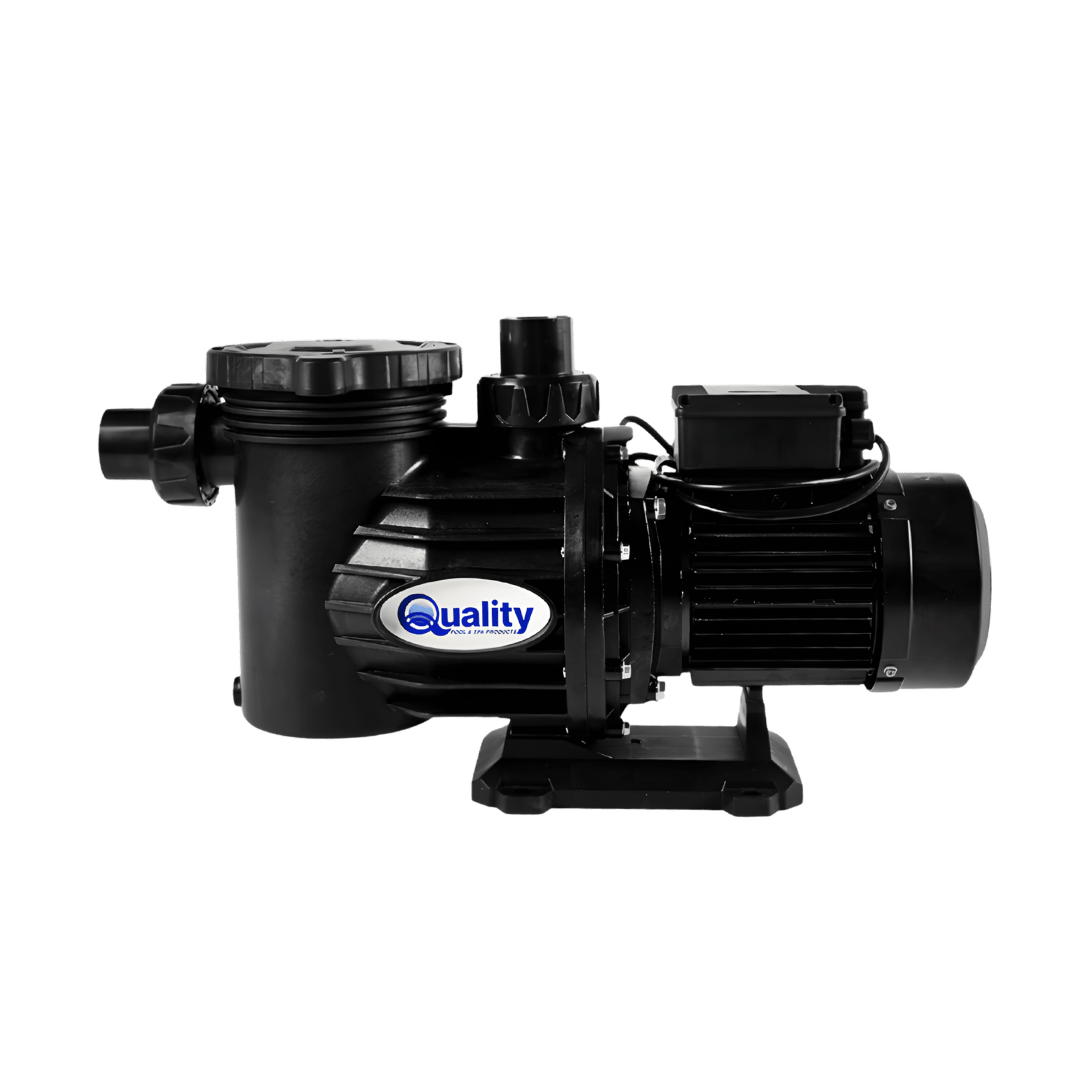

POOL PUMP AND MOTOR QUALITY SWIMFLO 2 1.1KW

POOL PUMP AND MOTOR QUALITY SWIMFLO 2 1.1KW Product Description: The Quality Swimflo 2 1.1kW Pool Pump and Motor is part of the Quality Swimflo 2 swimming pool pump range and is designed for larger pool filtration systems up to 90,000 litres. It is a practical choice for pool owners who need stronger circulation than a 0.75kW pump, but do not require a 1.5kW setup. A pool pump is the main circulation point of a swimming pool system. It draws water from the pool through the weir or skimmer, passes it through the pump leaf basket, pushes it through the sand filter and returns filtered water back to the pool. When the pump, filter and pipework are correctly matched, the pool water is easier to manage and filtration can work more effectively. The Quality Swimflo 2 1.1kW model is recommended for use with a 4 bag sand filter. This makes it suitable for larger residential pools where a strong water turnover rate is needed. The supplied product information also references the SFP11 sizing context, which is commonly used when matching this power class with the correct filter system. This pump includes a composite stainless steel shaft and a 3/4 inch ceramic shaft seal, both listed in the supplied product information. It also includes a low profile twist and lock lid, designed to make leaf basket access easier while helping create a secure seal when closed correctly. The pump is self priming and can be installed above or below water level when correctly installed. If the pump is installed below water level, a control valve should be fitted on the suction pipe between the pool weir or skimmer and the pump. This helps prevent flooding when the lid is opened for cleaning the pump leaf basket. Correct pipe sizing is important. The supplied installation instructions state that the suction and discharge pipes must not be smaller than the pump connection. The suction pipe diameter should be 50mm minimum, with 63mm recommended where suitable. The suction line should be kept as short as possible and should enter the pump straight and horizontally for at least four times the pipe diameter. Pump positioning, ventilation and drainage are also important. The pump should be placed on a flat, level surface that is protected from rain and flooding. The motor is fan cooled and needs proper airflow during operation. A minimum clearance of 150mm behind the motor fan cowling should be allowed for ventilation and service access. Electrical connection must be completed by a suitably qualified person. The supplied cable length is for testing only and should be replaced with suitably rated cable. The supplied installation guidance also states that the correct rotation is clockwise when viewed from the motor end, and that 220 volt single phase motors are wired by the manufacturer for correct rotation. Routine maintenance helps protect the pump and motor. Clean the pump leaf trap and pool weir basket regularly, keep the motor free from dust, replace the lid O ring yearly and backwash the filter weekly or when pressure rises by 50 percent above the starting operating pressure. Only silicone paste should be used on O rings and seals. Do not use Vaseline or petroleum based lubricants. FAQs What is the Quality Swimflo 2 1.1kW Pool Pump used for? The Quality Swimflo 2 1.1kW Pool Pump is used to circulate swimming pool water through the filtration system. It moves water from the pool through the filter and returns filtered water back to the pool. What pool size is this pump suitable for? The supplied product information states that this pump is suitable for pools up to 90,000 litres. What filter is recommended for the 1.1kW Swimflo 2 pump? The supplied information recommends pairing this pump with a 4 bag sand filter. It may also be matched with a suitable 4 bag filter option where the system design allows. Is this pump suitable for smaller pools? It can be used only where the pool system is correctly sized, but for smaller pools a lower powered pump may be more suitable. Always match the pump to the pool volume, filter size and pipework. Is this pump suitable for very large pools? This specific 1.1kW model is listed for pools up to 90,000 litres. Pools above that may require a larger pump and filter combination. Is this pump self priming? Yes. The supplied installation guidance states that the pump is self priming and can be installed above or below water level when correctly installed. Can this pump be installed below water level? Yes, but if installed below water level, a control valve should be fitted on the suction pipe between the pool weir or skimmer and the pump. This helps prevent flooding when the pump lid is opened. What pipe size should be used? The supplied installation guide states that suction and outlet pipe diameters should be 50mm minimum, with 63mm recommended where suitable. Why is motor ventilation important? The motor is fan cooled. Poor ventilation can cause overheating, premature bearing failure or motor burnout. A minimum clearance of 150mm behind the motor fan cowling should be allowed. Is the motor waterproof? No. The motor is not waterproof. The pump must be protected from rain and flooding, and the pump house or box must have adequate drainage. What maintenance does the pump need? Clean the pump leaf trap and pool weir basket regularly, keep the motor dust free, replace the lid O ring yearly, backwash the filter weekly or when pressure rises, and use silicone paste only on O rings and seals. What does it mean if water leaks from the drain seal plate flange? The supplied troubleshooting information states that water leaking from the drain seal plate flange usually means the mechanical seal needs to be replaced. What warranty does this pump have? The supplied product information states a 3 year warranty, subject to normal operating conditions. Key Features & Benefits 1.1kW pool pump and motor Suitable for larger pools up to 90,000 litres Recommended for 4 bag sand filters Self priming design Composite stainless steel shaft 3/4 inch ceramic shaft seal Low profile twist and lock lid Easy pump basket access Suitable for larger residential pool systems Can be installed above or below water level when correctly installed 50mm minimum pipework 63mm recommended pipework where suitable Fan cooled motor Professional installation recommended 3 year warranty, subject to normal operating conditions Real World Applications / Ideal For South African residential pools up to 90,000 litres Larger in ground swimming pools Pool systems using a 4 bag sand filter Pool owners replacing an existing 1.1kW pump New larger pool filtration systems Homes needing stronger daily pool circulation Pools using 50mm or 63mm plumbing Pump rooms with proper ventilation and drainage Pool owners wanting easier pump basket access Installations handled by pool professionals and electricians Pool systems where correct pump and filter matching matters Technical Specifications Specification Details Product Type Pool pump and motor Brand Quality Model Swimflo 2 Motor Power 1.1kW Reference Code SFP11 referenced in supplied product notes Maximum Pool Size Up to 90,000 litres Recommended Filter 4 bag sand filter Shaft Material Composite stainless steel Shaft Seal 3/4 inch ceramic shaft seal Lid Design Low profile twist and lock lid Installation Above or below water level when correctly installed Width 55.00 cm Depth 25.00 cm Height 30.00 cm Gross Weight 18.00 kg Self Priming Yes, according to supplied installation guidance Pipe Connections 50mm minimum, 63mm recommended where suitable Motor Cooling Fan cooled Recommended Rear Clearance Minimum 150mm behind motor fan cowling Electrical Connection By suitably qualified person only Warranty 3 years, subject to normal operating conditions Installation / Usage Notes Installation by a qualified pool professional or electrician is recommended. Suction and discharge pipes must not be smaller than the pump connection. Use 50mm minimum suction and outlet pipe diameter. Use 63mm pipework where suitable and where improved flow is required. Use suitable unions on or close to the pump connections for future servicing. Do not support the pipework on the pump or the pump on the pipework. Make sure all pipe connections are water and airtight. Use a suitable pipe jointing compound. Keep the suction pipe as short as possible. Use pipes rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for at least 4 times the pipe diameter. Do not overtighten fittings into the pump inlet or outlet. Position the pump on a flat, level surface. Protect the pump from rain and flooding. The motor is not waterproof. If installed below water level, fit a control valve on the suction pipe between the pool weir or skimmer and the pump. The pump should ideally be positioned no more than approximately 300mm above the pool water level. Allow at least 150mm clearance behind the motor fan cowling. Make sure the pump house or box has drainage and ventilation. Do not run the pump dry. Do not run the pump under closed valve conditions for extended periods. Electrical connections must be done by suitably qualified people only. A cable gland must be fitted to the terminal box. The supplied cable length is for testing only and should be replaced with suitably rated cable. Minimum cable specification supplied: 60245IEC66 HO7RN-F. Correct rotation is clockwise when viewed from the motor end. 220 volt single phase motors are wired at the manufacturer for correct rotation. Maintenance Guide Clean the pump leaf trap regularly. Clean the pool weir basket regularly. Keep dust from accumulating on the motor. Do not leave foreign objects on the motor. Replace the lid O ring at 1 year intervals to maintain a good seal. Keep the O ring seating face clean and smooth. Backwash the filter once a week or when the pressure exceeds 50 percent above the starting operating pressure. Use silicone paste only for O rings and seals. Do not use Vaseline or petroleum based lubricants. Isolate the motor before checking for faults. Troubleshooting Guide Motor fails to start Check that incoming mains wires are connected to the correct motor terminals. Check that the mains supply at the motor terminals matches the data on the motor name plate. Remove the fan cowl or use the motor shaft slot at the fan end to check whether the shaft rotates freely. If the shaft does not rotate freely, the motor may need to be removed to check for foreign objects jammed in the impeller. Reset the thermal overload if fitted. Motor hums but will not start Check whether the shaft can rotate freely. If the shaft does not rotate, check for faulty bearings or foreign objects in the impeller. If the shaft rotates, check whether the capacitor is functioning. Check that the motor windings are not down to earth. Pump runs but does not pump properly Check direction of rotation. Make sure the pump is properly primed. Make sure the correct valves are open. Make sure the leaf trap and filter are clean. Backwash the filter if needed. Check that the leaf trap lid and O ring are sealing properly. Tighten the lid lock handle firmly. Air bubbles at the pool return may indicate a sealing or suction air leak. Water leaks from the drain seal plate flange The mechanical seal likely needs replacement. Motor runs noisily Clean the leaf trap. Check for obstruction on the suction line. If the noise continues, motor bearings may need replacement. Warranty Information The supplied product information states a 3 year warranty, subject to normal operating conditions. Damage caused by motor flooding is normally not covered, based on the supplied installation guidance. Confirm warranty terms with the retailer or supplier before purchase. Conclusion The Quality Swimflo 2 1.1kW Pool Pump and Motor is a strong pool circulation pump for larger residential pools up to 90,000 litres. With a 1.1kW motor, low profile twist and lock lid, composite stainless steel shaft, 3/4 inch ceramic shaft seal and recommended pairing with a 4 bag sand filter, it is a practical choice for larger pool filtration systems when correctly installed and maintained. Get optimal filtration with the Quality 4-Bag Sand Filter or Eartheco 4 Bag Sand Filter perfectly matched to the SFP11’s power. Need a step down in size? Try the Quality 0.75kW Swimflo 2 Pump (SFP75) for medium-sized pools. Don’t forget to stock up on Pump Accessories for maintenance and installation ease. Warranty Information:
